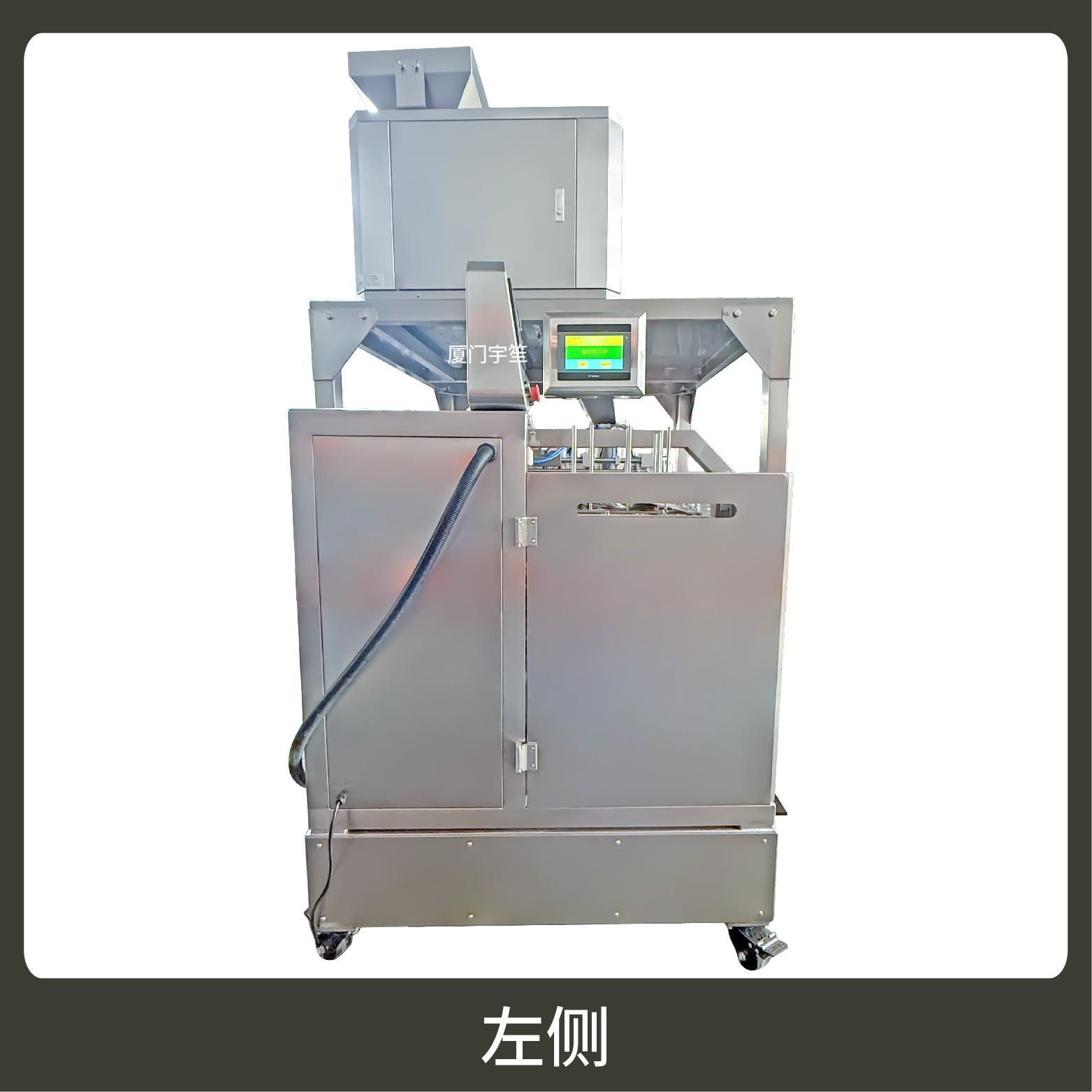

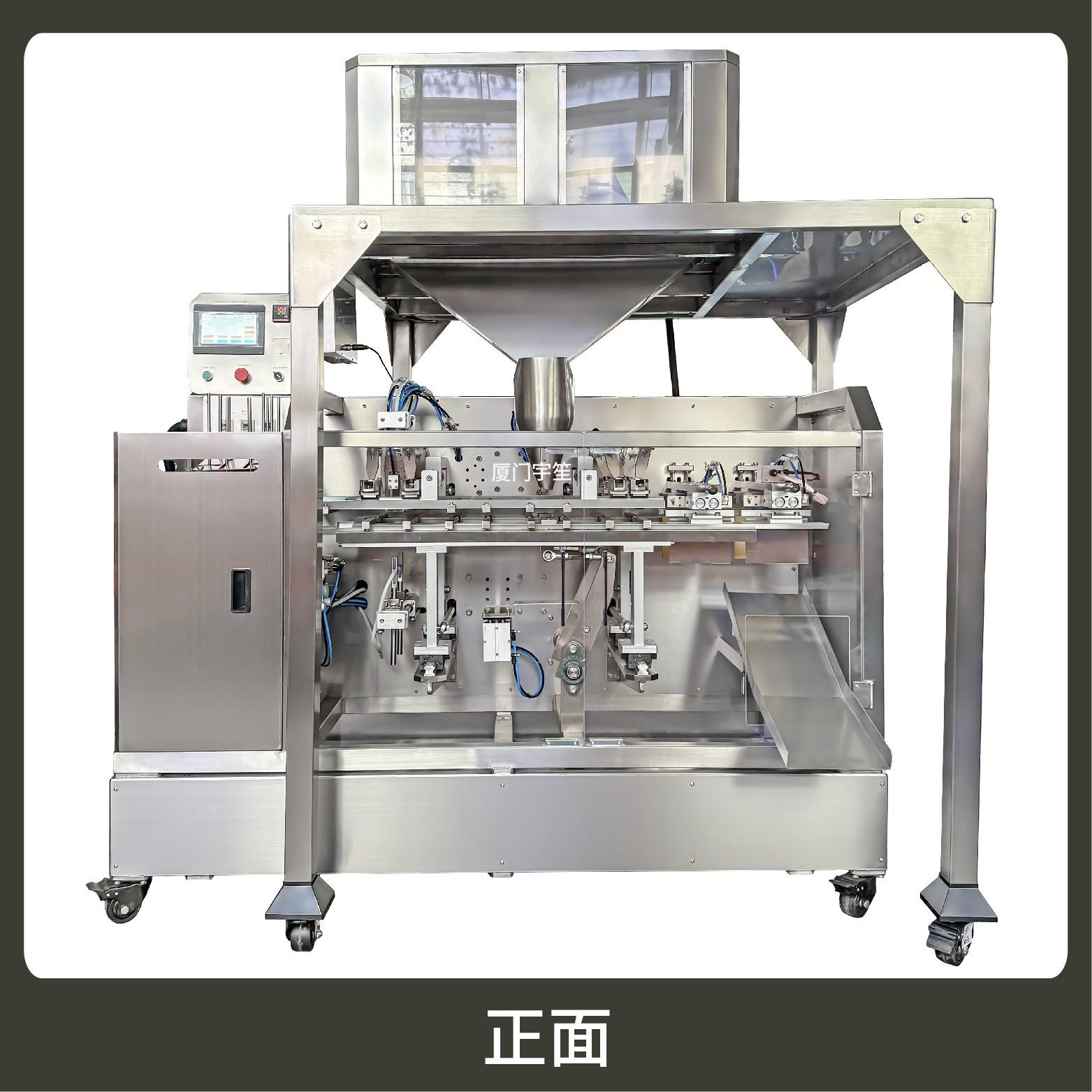

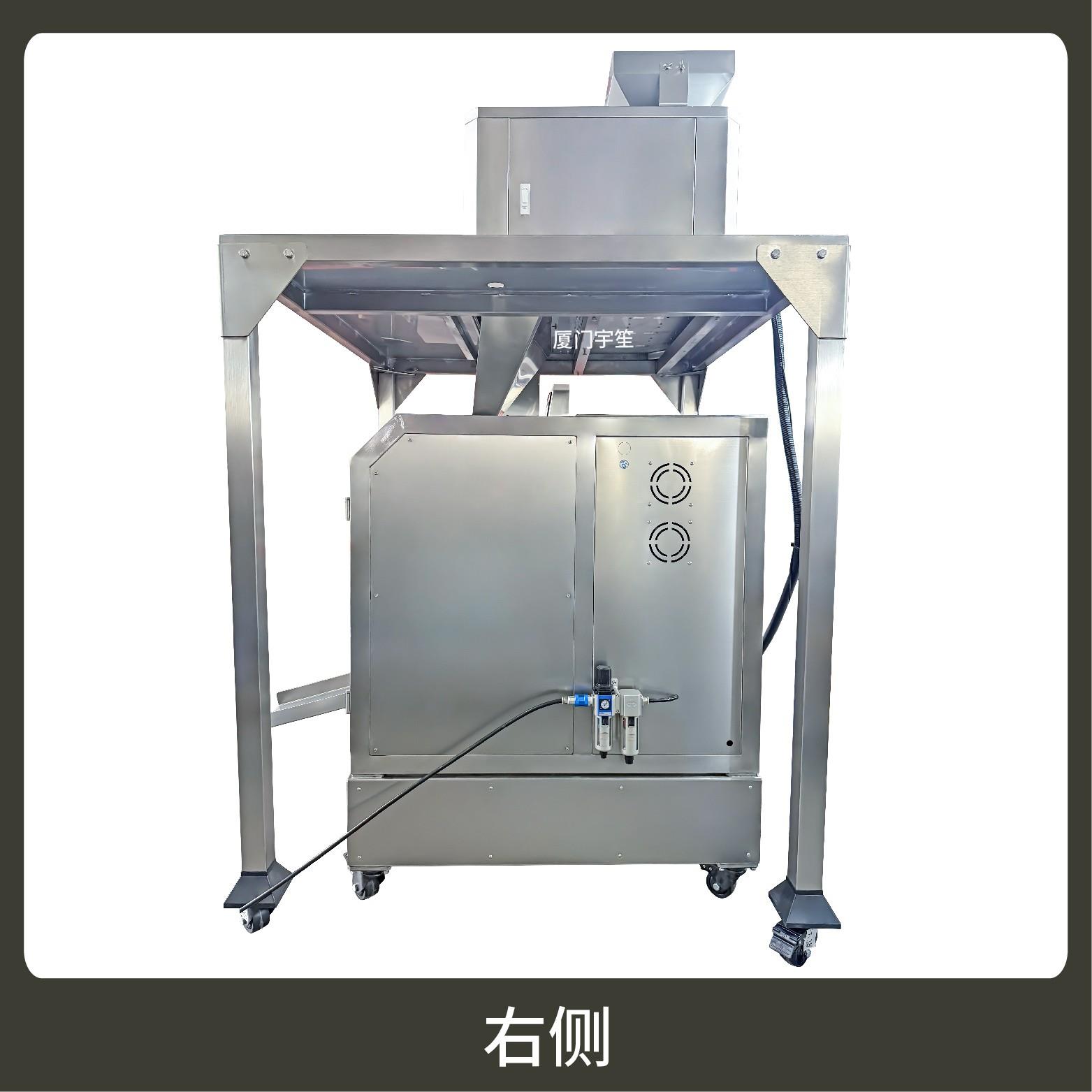

YS-SP180DZC  Bag filling and sealing machine(electronic scale )

YS-SP180DZC给袋式包装机（电子秤）

特点：

1、适用于炒货（瓜子、核桃等）、休闲零食（冻干果干/蔬菜干、牛肉粒、小饼干等）、干货（香菇、木耳等）物品的计量包装。

Suitable for the metering and packaging of roasted snacks (sunflower seeds, walnuts, etc.), leisure snacks (freeze-dried fruits/vegetables, beef cubes, small biscuits, etc.), and dried foods (shiitake mushrooms, fungus, etc.).

2、用于自封袋、站立袋、拉链袋，可抽真空、充氮气。包装流程全自动，无需人工操作。可根据充填物料的性质选配不同的下料结构，且可根据客户要求配置打印批号等功能。

Used for ziplock bags, standing bags, zipper bags. The packaging process is fully automatic without manual operation. Different feeding structures can be selected according to the nature of filling materials, and can be configured to print batch numbers and other functions according to customer requirements.

3、采用触摸屏操作，PLC控制，封口温度自动补偿，控温精准，封口美观大方。（可做M袋、站立袋、自封袋）

It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.

4、包装材料：复合膜，如：纯铝，镀铝等预制袋。

Packing material: composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.

技术参数：

计量范围：20-1000g

Measuring Scope

预制袋：长 ( L ) ：100 - 290mm

Prefab bag   宽 ( W ) ：120 - 180mm(带飞机孔、圆孔)

包装速度：10 - 25bags / min

Packing Speed

外型尺寸：1877 * 1410 * 2224 mm（规格可定制）

Dimension  ( L * W * H )

整机重量：500 kg

Weight

总 功 率：AC220V / 50 - 60Hz / 4.2kw

Total Power

气       源：≥0.6Mpa

Gas source
