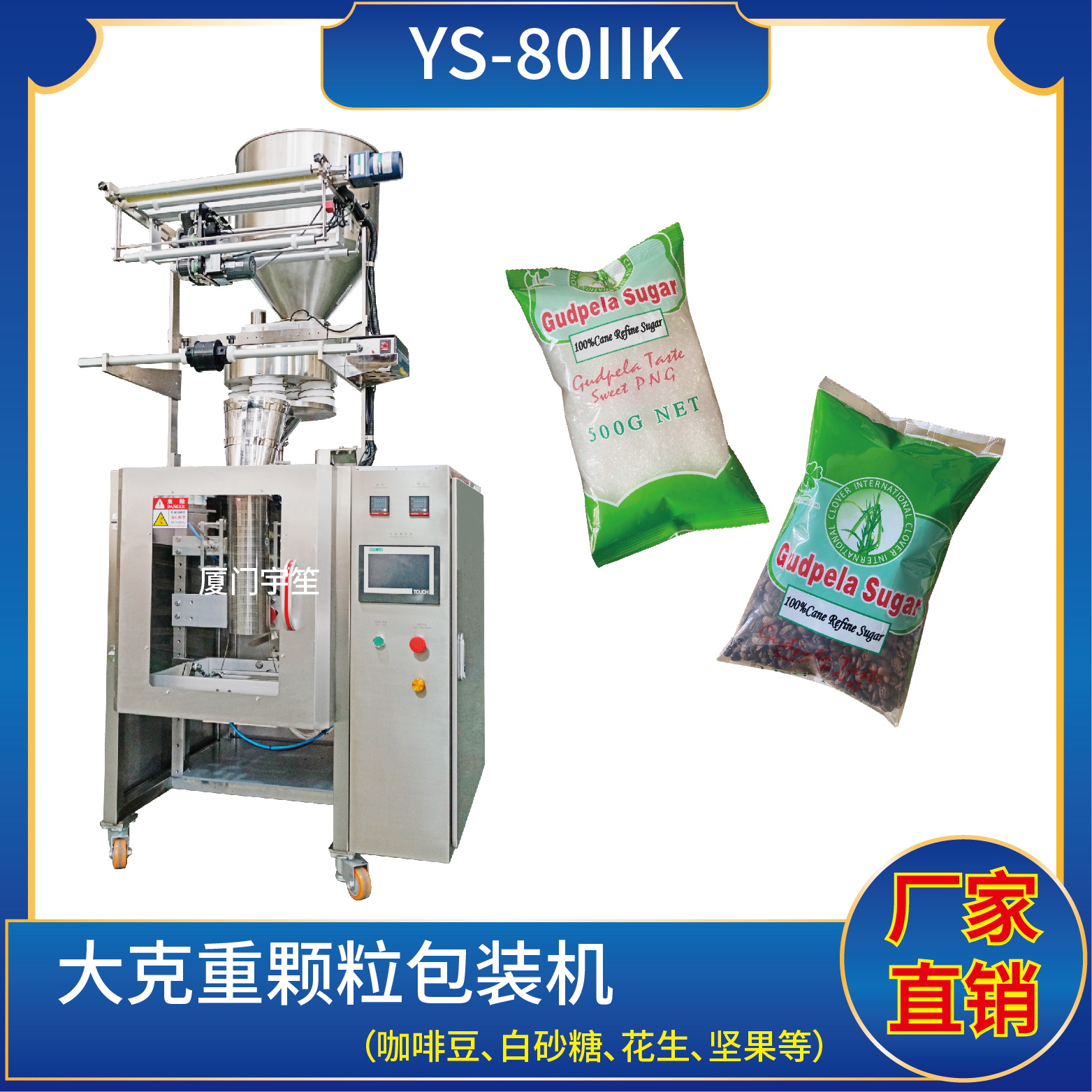

YS-80IIBK 颗粒自动包装机
YS- 80IIBK 大克重颗粒包装机
特 点 Characteristic
1、适用于食品、医药、化工、化妆品行业中颗粒、粉剂、液体、酱料等物品的大克重计量包装，如：干果、辣椒面、咖啡粉、谷物粉、辣椒油、牛奶、冰袋等。
Suitable for the large-weight metering and packaging of granules, powders, liquids, pastes and other items in the food, pharmaceutical, chemical, and cosmetics industries, such as dried fruits, chili powder, coffee powder, grain powder, chili oil, milk, and ice packs.
2、可自动完成制袋、计量、下料、封合、分切、计数，可根据客户要求配置打印批号等功能。All the works of bag making,measuring, filling,sealing, cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、触摸屏操作，PLC控制，步进电机控制袋长，性能稳定、调整方便、检测准确。智能式温控仪，PID调节，保证将温度的误差控制在1℃内。
The touch screen operation, PLC contro,drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包装材料：复合膜。
Packaging materials：composite film.

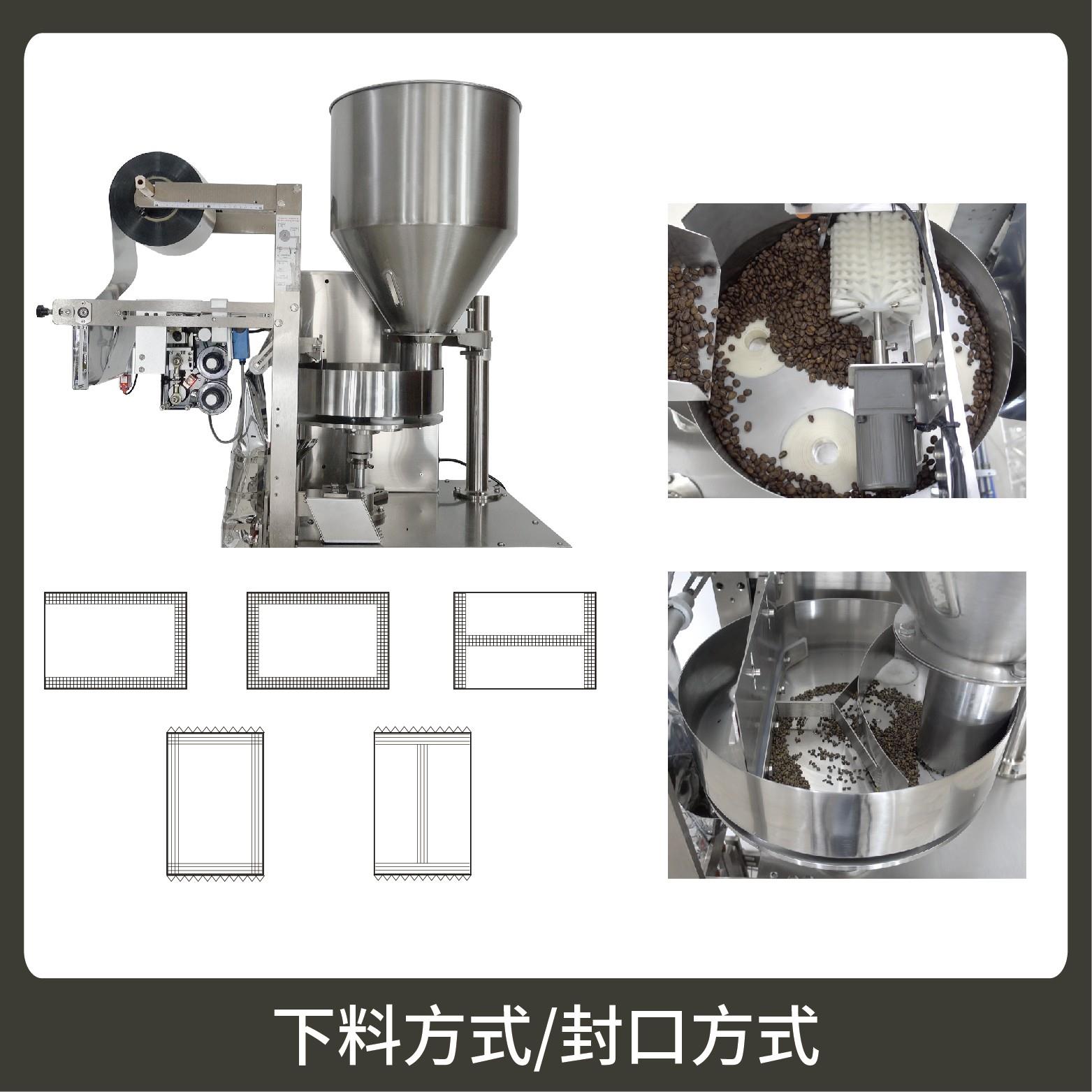

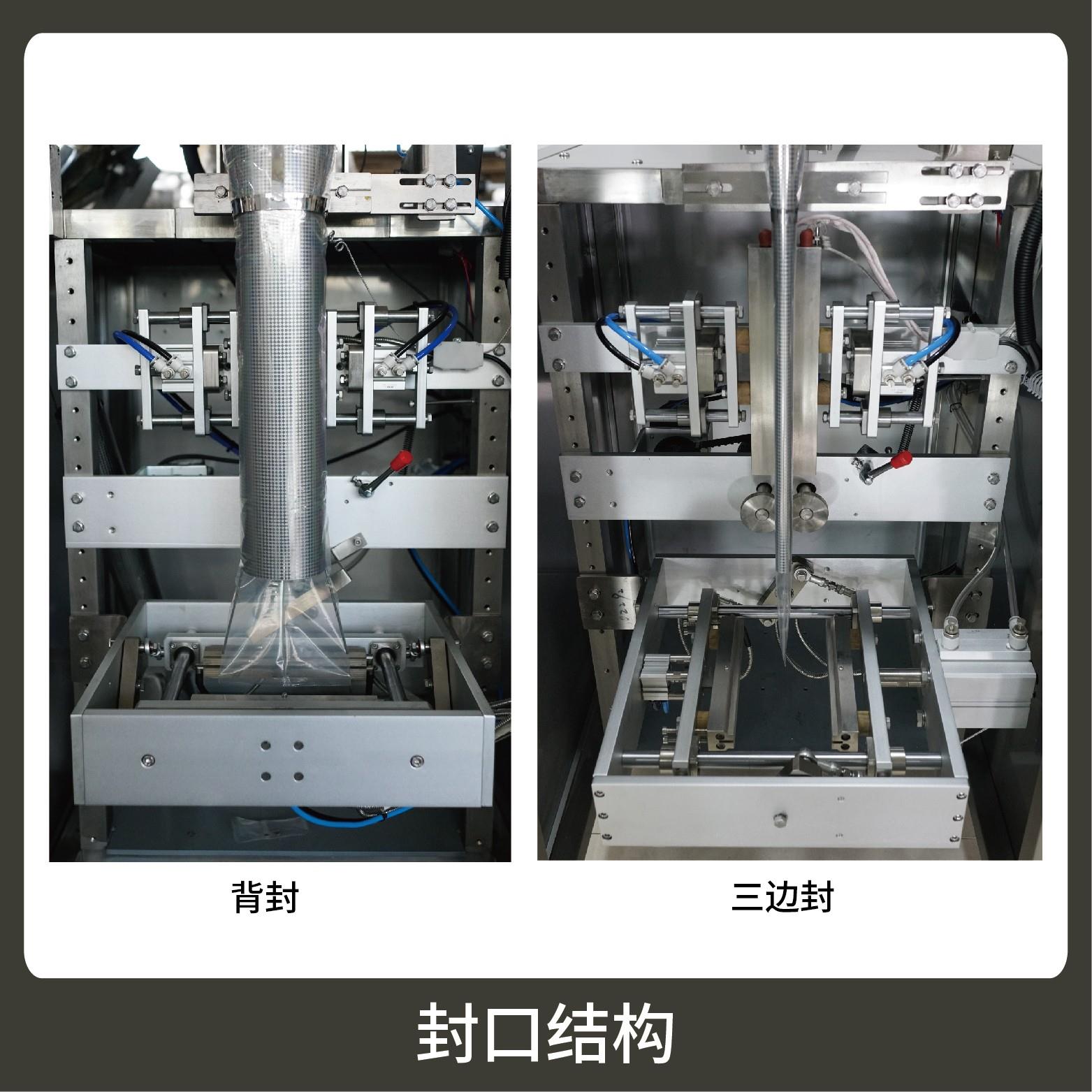

封口方式 Sealing Type
三边封口 背封封口 四边封口
Three sides sealing /Back sealing/ Four sides Sealing
技术参数
Technical Parameters
计量范围：0.1 - 1kg
Measuring Scope
制袋尺寸：长（L）：60 - 280mm
Bag size 宽（W）：50 - 200mm
包装速度：10 - 30bags/min
Packing Speed
外型尺寸: 970*1100*1900mm
Dimension ( L * W * H )
整机重量：300kg
Weight
总 功 率：AC220V / 50HZ / 1.5KW
Toal power
1、适用于食品、医药、化工、化妆品行业中颗粒、粉剂、液体、酱料等物品的大克重计量包装，如：干果、辣椒面、咖啡粉、谷物粉、辣椒油、牛奶、冰袋等。
Suitable for the large-weight metering and packaging of granules, powders, liquids, pastes and other items in the food, pharmaceutical, chemical, and cosmetics industries, such as dried fruits, chili powder, coffee powder, grain powder, chili oil, milk, and ice packs.
2、可自动完成制袋、计量、下料、封合、分切、计数，可根据客户要求配置打印批号等功能。All the works of bag making,measuring, filling,sealing, cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、触摸屏操作，PLC控制，步进电机控制袋长，性能稳定、调整方便、检测准确。智能式温控仪，PID调节，保证将温度的误差控制在1℃内。
The touch screen operation, PLC contro,drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包装材料：复合膜。
Packaging materials：composite film.
计量范围：0.1 - 1kg
Measuring Scope
制袋尺寸：长（L）：60 - 280mm
Bag size 宽（W）：50 - 200mm
包装速度：10 - 30bags/min
Packing Speed
外型尺寸: 970*1100*1900mm
Dimension ( L * W * H )
整机重量：300kg
Weight
总 功 率：AC220V / 50HZ / 1.5KW
Toal power
适用于食品、医药、化工、化妆品行业中颗粒、粉剂、液体、酱料等物品的大克重计量包装，如：干果、辣椒面、咖啡粉、谷物粉、辣椒油、牛奶、冰袋等。
Suitable for the large-weight metering and packaging of granules, powders, liquids, pastes and other items in the food, pharmaceutical, chemical, and cosmetics industries, such as dried fruits, chili powder, coffee powder, grain powder, chili oil, milk, and ice packs.
