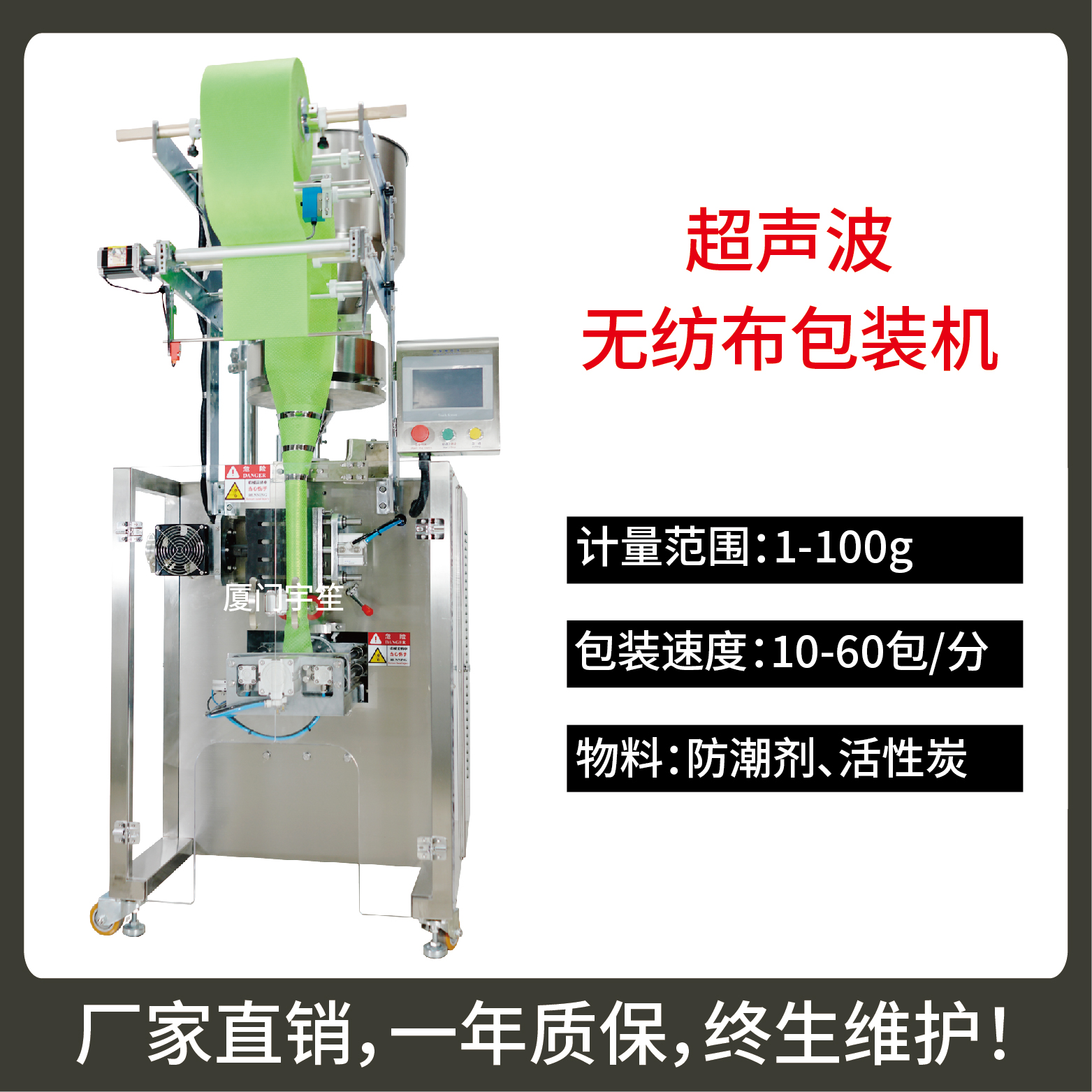

YS-62CSB 超声波无纺布包装机
YP-62 Ultrasonic non-woven packing machine
YP-62 超声波无纺布包装机
特 点 Characteristic
1、适用于活性炭、干燥剂、卤料包、足浴包等物品的计量包装。
Suitable for the metering and packaging of items like activated carbon, desiccants, halogen material sachets, and foot bath sachets.
２、可自动完成制袋、计量、下料、封合、分切、计数、且可根据客户要求配置打印批号等功能。
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、触摸屏操作，PLC 控制，驱动步进电机控制袋长，性能稳定、调整方便、检测准确。智能式温控仪，PID调节，保证将温度的误差范围控制在1℃以内。
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、包装材料：无纺布等。
Packing material：Non-woven and so on.

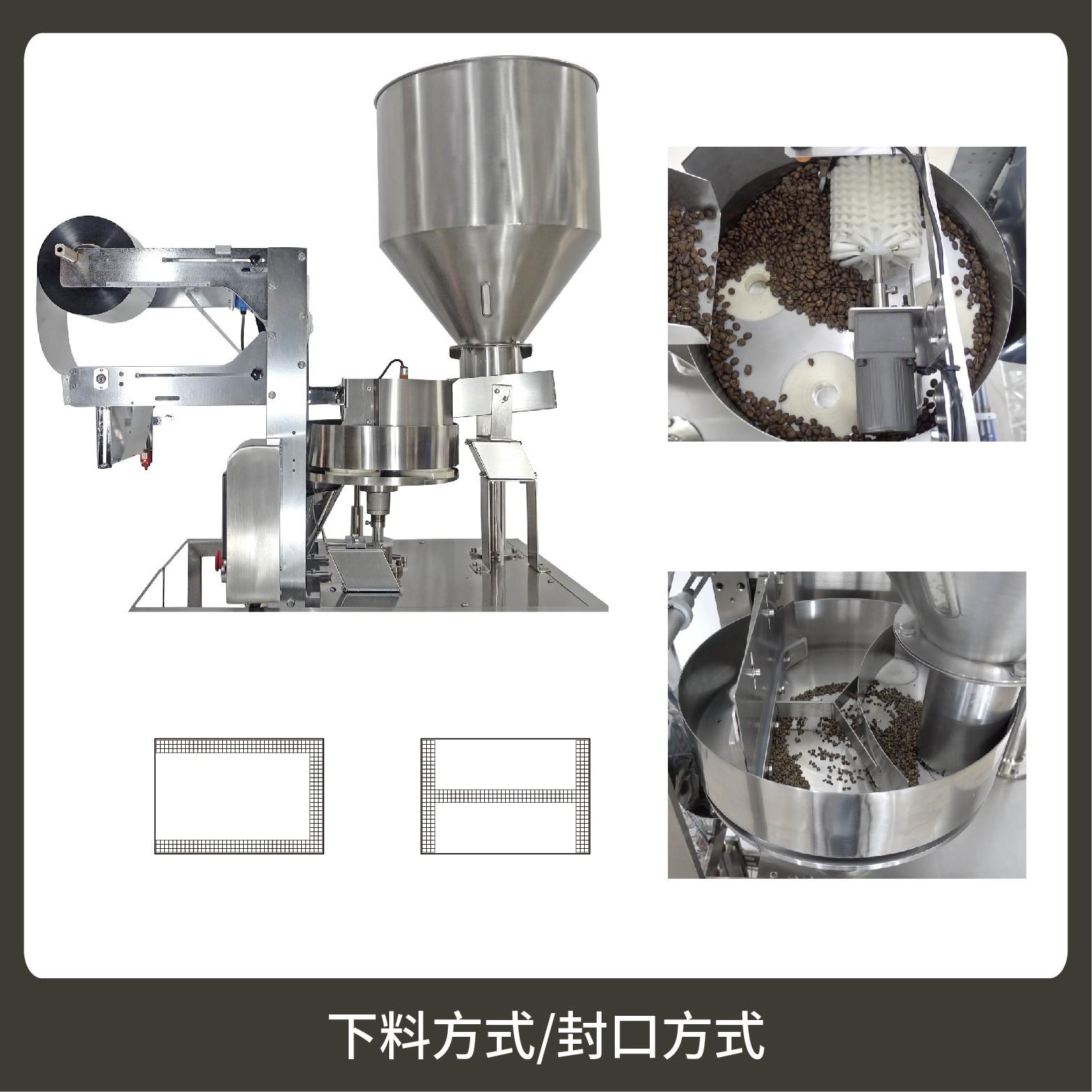

封口方式 Sealing Type
三边封口 背封封口
Three sides Sealing / Back sealing
技术参数
Technical Parameters
计量范围：1 - 100 g
Measuring Scope
制袋尺寸：长( L ) : 30 - 170 mm
Bag Size 宽( W ) : 30 - 130 mm
包装速度：20 - 40 bags/min
Packing Speed
外型尺寸：750 * 1082 * 1967mm
Dimension ( L * W * H )
整机重量：300 kg
Weight
总 功 率：220V / 50-60Hz / 3kw
Total Power
气源：≥0.6Mpa
Gas source
1、适用于活性炭、干燥剂、卤料包、足浴包等物品的计量包装。
Suitable for the metering and packaging of items like activated carbon, desiccants, halogen material sachets, and foot bath sachets.
２、可自动完成制袋、计量、下料、封合、分切、计数、且可根据客户要求配置打印批号等功能。
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、触摸屏操作，PLC 控制，驱动步进电机控制袋长，性能稳定、调整方便、检测准确。智能式温控仪，PID调节，保证将温度的误差范围控制在1℃以内。
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、包装材料：无纺布等。
Packing material：Non-woven and so on.
计量范围：1 - 100 g
Measuring Scope
制袋尺寸：长( L ) : 30 - 170 mm
Bag Size 宽( W ) : 30 - 130 mm
包装速度：20 - 40 bags/min
Packing Speed
外型尺寸：750 * 1082 * 1967mm
Dimension ( L * W * H )
整机重量：300 kg
Weight
总 功 率：220V / 50-60Hz / 3kw
Total Power
气源：≥0.6Mpa
Gas source
适用于活性炭、干燥剂、卤料包、足浴包等物品的计量包装。
Suitable for the metering and packaging of items like activated carbon, desiccants, halogen material sachets, and foot bath sachets.
